		Year 2009 Thin film pilot production line with lab and testing facilities Cost new approx $19.5 USD million Turnkey production line from ULVAC (Gen.5, 1.1 x 1.4 m2) Capable for fabrication of single junction (a-Si) and Multi-junction thin film (a-Si/μc-Si) for R&D and pilot scale production Supported by PV Test Lab with equipment capable to test according to IEC-61730 and IEC-61646 standardsCan be seen running Includes technology transfer
Ref 251794
		Complete List of Equipment of equipment below. The seller will decomission the machines ready for collection, start up help may be available Main equipment; *X-machine* Brand: ULVAC Model: IDR-1400M Used for Repair/rework of defects after laser scribing
		Soldering & wire bonding Brand: Kuroda Techno. Co. Ltd Model:KTWB-1400 Used for Soldering (for connection)
		Curing Oven Brand: Tung Chang Machinery Model:TCF-1114 Used to cure the potting materials for junction box
		Laminator Brand: NISSHINBO Model: Lam1537N Used to laminate the PV panel with back side support and EVA
		Edge Sealing Brand: Assembly INC. To seal the edge of PV panels
		Simulator (flash) Brand: NISSHINBO/Spire Model:SPI-SUN4800i-S
		*Potting* Brand: Nippon Sosey Kogyo Co Used to dispose resin for gluing the junction box onto the PV panels
		E-gun Brand: F.S.E. Corporation Used to sputter thin film (R&D tools)
		Glass cutter Brand: Ying Chang Machinery Co Ltd Model: YC-300C Used to cut glass/PV panels
		Cleaner Brand: KENMEC Mechanical Engineering Co., Ltd Model: 97077 Used to clean up the glass panels at different stage of the process
		Laser scriber Brand: Kataoka To laser scribe and separate PV cell.
		Reflector Brand: Raditech Model: SR-2 Used to measure coating thickness
		Edge Dection/Deletion Brand: Kataoka Model: BIPV-LED Used to detection the excess Si at the edges of PV panels to avoid shortage
		AOI Brand: Dr.Schenk Inspection Systems Used to inspect if particles exist on glass/PV surface
		TCO Short Tester Brand: Advanced Electronics Co Ltd Model: RC-1400 To QC if there is any shortage of PV after laser scribing
		PECVD Brand: ULVAC Model: CCV-1400-5 To deposit a-Si thin film

		Light soaking Brand: All real Model:LS1411 To expose PV Panels to light and stabilize their performance.

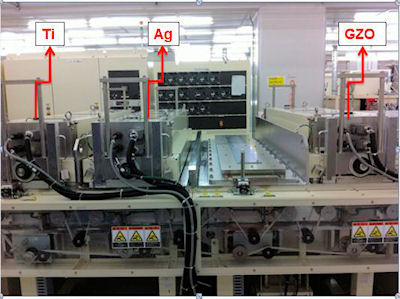

		PVD Brand: ULVAC Model: SCH-135B To perform Physical Vapor deposition of GZO, Ag & Ti
		CIM-1400 Brand: ULVAC Model: CIM-1400 To deposit microcrystalline
		Forklift Brand: Komatsu Forklift Model: SP-1028 To transfer heavy samples
		Solar Simulator (Steady State) Brand: All Real Model: SSSS - Light source : Class AAA for STC & NOCT test To provide known light source and intensity and test the performance of PV panels
		Dielectric Tester Brand: Extech Model: 7427 For insulation test, Ground continuity test and wet leakage test

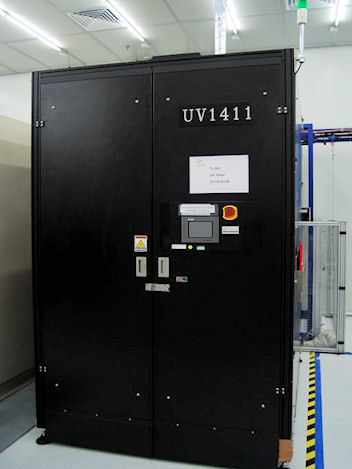

		UV Tester (UV-A+B Lamps) Brand: All Real Model: UV1411 Reliability test: exposure substrate to UV-A & UV-B
		Temperature and Humidity Chamber - 1 Brand: Giant Force Model: GTH-8200-45-CP-AR Reliability test: exposure substrate to temp. cycling or constant temp. & Humidity Temperature and Humidity Chamber - 2 Brand: Giant Force Model: GTH-8200-45-CP-AR Reliability test: exposure substrate to temp. cycling or constant temp. & humidity

		Mechanical Load Tester Brand: King design Model: KD706-E Test the physcial strength of PV framework under pressure

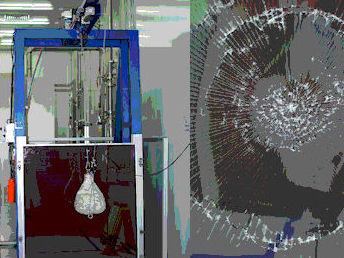

		Hail Tester Brand: King design Model: KD705-E To test PV panel against shooting by Hail stones
		Impulse Voltage Generator Brand: Megapulse To perform impulse voltage drift
		Partial Discharge Tester Brand: Kikusui Model: KPD2050
		Module Breakage Tester Brand: Glory Clever International Ltd Safety test of PV against impacts

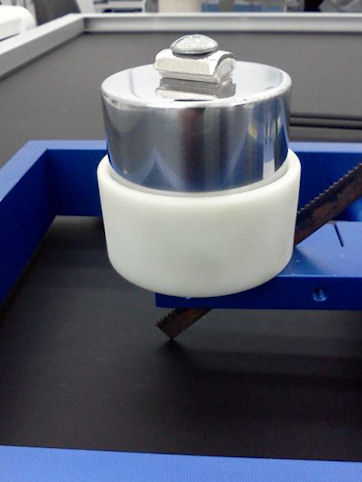

		Cut test: Evaluate the polymer sheet can withstand scratch or cut from normal installation

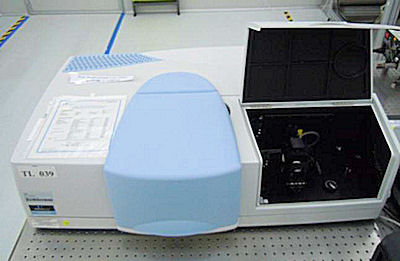

		UV/Vis/NIR Spectrometer Brand: Perkin Elmer Model: Lamda 750 To acquire UV spectra of solid and liquid. Measuring UV from 190 to 3300nm

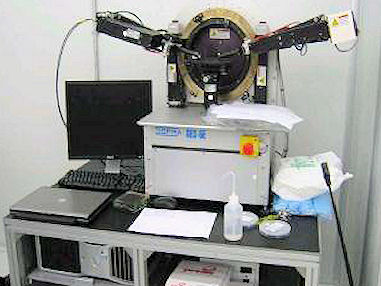

		Spectroscopic Ellipsometer (RD) Brand: Sorpa To test the thickness of TCO or Si coating

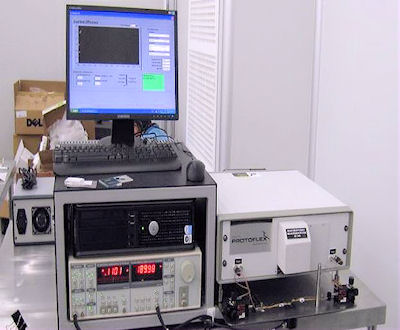

		Quantum Efficiency Measurement System Brand: Protoflex Model: Protoflex 1400 To measure the QE of a PV system
		Raman Microscope Brand: Horiba Jobin-Yvon S.A.S. Model: HR800 To acquire Raman spectra (material characterization
		Solar Cell I-V Measuring System Brand: Advanced Electronics Co Ltd Model: PS-100 (Newport ABB Solar sim + Keithley 2400) To take the I-V cure of PV systems, Light source, class ABB

Year 2009

Thin film pilot production line with lab and testing facilities

Turnkey production line from ULVAC (Gen.5, 1.1 x 1.4 m2)

Capable for fabrication of single junction (a-Si) and Multi-junction thin film (a-Si/μc-Si) for R&D and pilot scale production

Supported by PV Test Lab with equipment capable to test according to IEC-61730 and IEC-61646 standardsCan be seen running

Includes technology transfer

Complete List of Equipment of equipment below. The seller will decomission the machines ready for collection, start up help may be available

Main equipment;

X-machine

Brand: ULVAC Model: IDR-1400M

Used for Repair/rework of defects after laser scribing

Soldering & wire bonding

Brand: Kuroda Techno. Co. Ltd Model:KTWB-1400

Used for Soldering (for connection)

Curing Oven

Brand: Tung Chang Machinery Model:TCF-1114

Used to cure the potting materials for junction box

Laminator

Brand: NISSHINBO Model: Lam1537N

Used to laminate the PV panel with back side support and EVA

Edge Sealing

Brand: Assembly INC.

To seal the edge of PV panels

Simulator (flash)

Brand: NISSHINBO/Spire Model:SPI-SUN4800i-S

Potting

Brand: Nippon Sosey Kogyo Co

Used to dispose resin for gluing the junction box onto the PV panels

E-gun

Brand: F.S.E. Corporation

Used to sputter thin film (R&D tools)

Glass cutter

Brand: Ying Chang Machinery Co Ltd

Model: YC-300C

Used to cut glass/PV panels

Cleaner

Brand: KENMEC Mechanical Engineering Co., Ltd

Model: 97077

Used to clean up the glass panels at different stage of the process

Laser scriber

Brand: Kataoka

To laser scribe and separate PV cell.

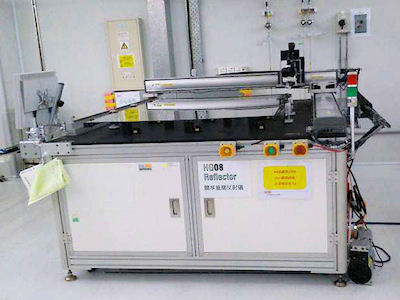

Reflector

Brand: Raditech

Model: SR-2

Used to measure coating thickness

Edge Dection/Deletion

Brand: Kataoka

Model: BIPV-LED

Used to detection the excess Si at the edges of PV panels to avoid shortage

AOI

Brand: Dr.Schenk Inspection Systems

Used to inspect if particles exist on glass/PV surface

TCO Short Tester

Brand: Advanced Electronics Co Ltd

Model: RC-1400

To QC if there is any shortage of PV after laser scribing

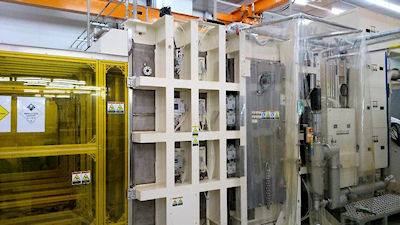

PECVD

Brand: ULVAC

Model: CCV-1400-5

To deposit a-Si thin film

Light soaking

Brand: All real

Model:LS1411

To expose PV Panels to light and stabilize their performance.

PVD

Brand: ULVAC

Model: SCH-135B

To perform Physical Vapor deposition of GZO, Ag & Ti

CIM-1400

Brand: ULVAC

Model: CIM-1400

To deposit microcrystalline

Forklift

Brand: Komatsu Forklift

Model: SP-1028

To transfer heavy samples

Solar Simulator (Steady State)

Brand: All Real

Model: SSSS - Light source : Class AAA for STC & NOCT test
