Year 2008
Mono & Poly silicon 40MW cell production line - Turnkey solution offered
$ Call to discuss price
Guaranteed Average 18% efficiency on Mono
|
Ref 7487 |
|
|
![](Image4.jpg) |
|
![](Image5.jpg)
|
|
|

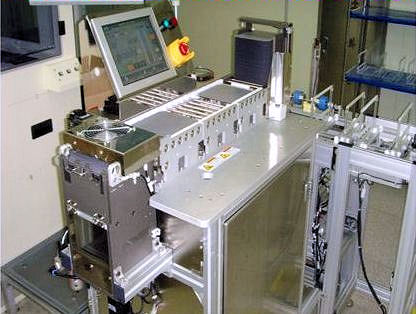

Breakage Rate : <0.2%
Up Time : >95%
Full Automation Robot System

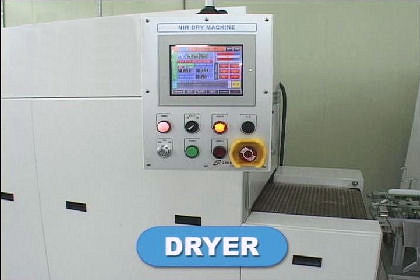

Hot Air Dry Type |
![](Image7.jpg) |
|
![](Image8.jpg) |
![](Image10.jpg) |
|

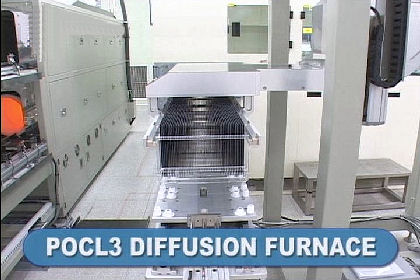

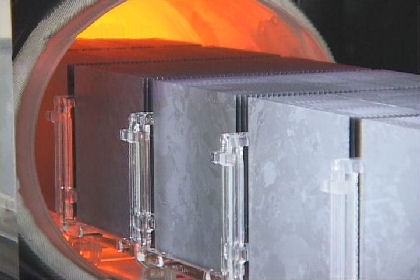

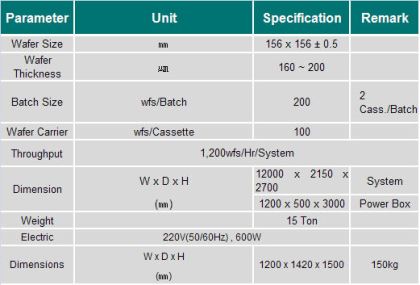

Breakage Rate : <0.1%
Up Time : >98%
Long Flat Zone : 1465mm
Batch Capacity : 400wfs / 1Tube
Temp Control Accuracy : ±0.5 ℃ |
![](Image18.jpg) |
|
![](Image6v2.jpg) |
![](Image27.jpg) |
|

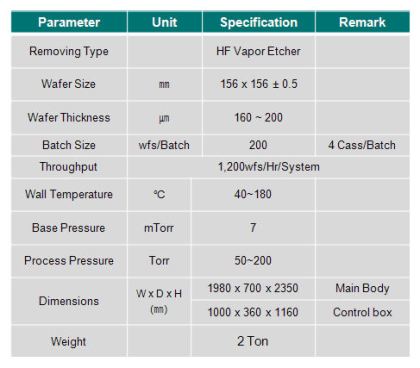

Breakage Rate : <0.1%
Up Time : >97%

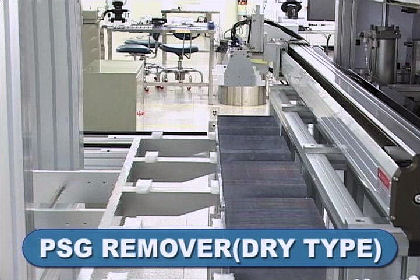

Environment Friendly : Not Use Wet Chemical
Small Foot-print : Smaller than Wet PSG Remover(1/6)
Low Cost of Operating(1/3) : No Chemical, DI, Wastewater |
![](Image28.jpg) |
|
![](Image7v2.jpg) |
![](Image30.jpg) |
|

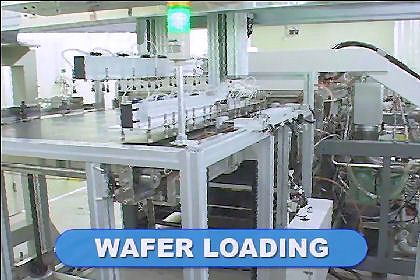

![](Image35.jpg) |
![](Image37.jpg) |
|

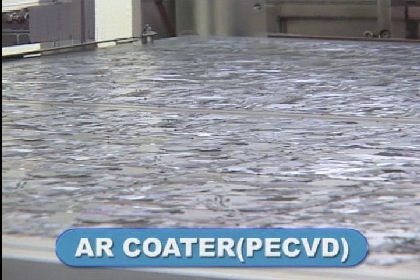

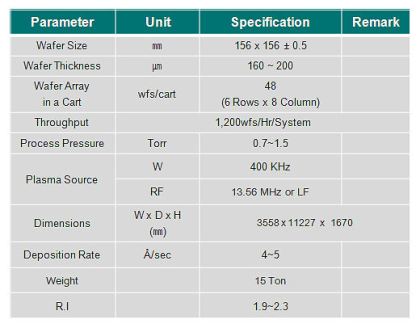

Breakage Rate : <0.2%
Up Time : >90%
Plasma Type : Direct Plasma.
Fast Heating with Lamp Heater +Plate Heater
Quick Wafer Cooling with Cooling Plate in Unload Chamber |
![](Image16.jpg) |
|
![](Image12v2.jpg) |
![](Image44.jpg) |
|
|
![](Image46.jpg) |
|

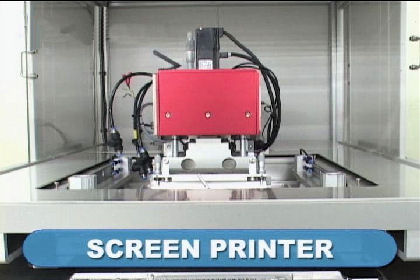

Breakage Rate : <0.2%
Up Time : >93%

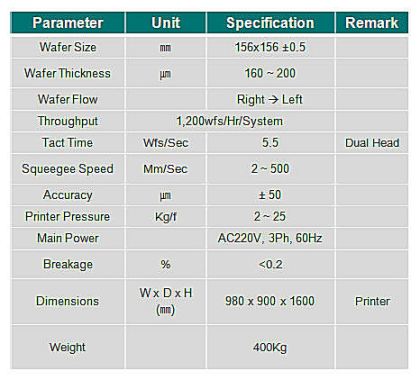

Max Cycling Time : 5.5sec / 2wfs
CCD Camera + Mechanical Align : Align Error “Zero”
Air Cushion type Wafer Table : Minimize Wafer Breakage |
![](Image19.jpg) |
|
![](Image20.jpg) |
![](Image55.jpg) |
|

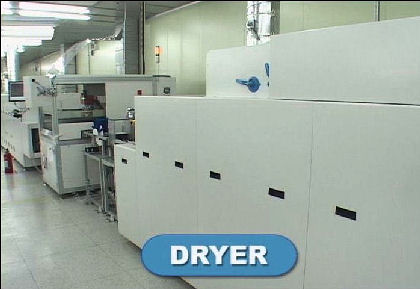

Breakage Rate : <0.2%
Up Time : >98%
Belt Speed : 3~15M/min
Temp Uniformity Over Total Wafer Area : <1.0 ℃
Belt Cleaning : Brush Cleaning (Option : Ultrasonic Cleaning) |
![](Image56.jpg) |
|
![](Image24.jpg) |
![](Image61.jpg) |
|
One Rail Conveyor Belt
Fast Tact Time : 1.5 sec/wfs
Breakage Rate : <0.1%
Up Time : >98%
Wafer Edge Chipping Free
Vacuum Chucking Compatible to wafer warp of 2mm
Distance Control From Wafer Edge : 0.5mm ±0.1 |
![](Image63.jpg) |
|
![](Copy of Image27.jpg) |
![](Image29.jpg) |
|
![](Copy of Image30.jpg) |
![](Image66.jpg) |
|
![](Image64.jpg) |
![](Image69.jpg) |
|
![](Image70.jpg) |
![](Image72.jpg) |
|
|
|
|
|
