30 MW Capacity

2 x Komax XCell 3400 Stringers Year 2008 (upgraded 2010)

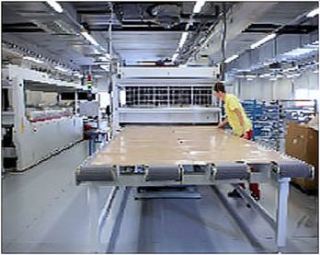

Komax Layup (2008)

3s Laminator (2010)

€ sold more needed

Ref 244030

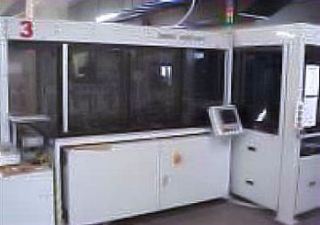

 Type: Komax XCell3400
 year 2007 / upgraded 2010
 quantity: 2 Stringers Komax XCell3400
 capacity: Up to 550 cells/h for each machine
 Range Cell: 100 – 210 mm square and pseudo square
 bus bar 2 - 3
 Max. String length: 2,5 m
 optical alignment with cell check
 Cell warming
 controlled cool down
 User-friendly touch screen
 Programmed control of assembly line

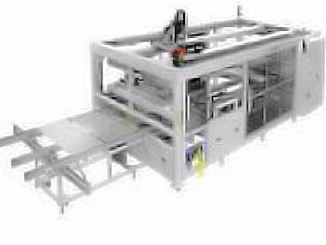

 Type: Lay-up Komax
 year 2007 / upgraded 2010
 quantity: 1 Lay-up Komax
 glass transport conveyor
 servo Control string handling unit with X, Y, Z,
 Machine inspection, optical visualization / string alignment
 one string rework position
 two string buffer position
 end tab cutting

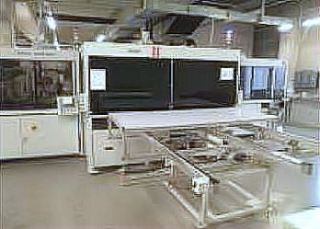

 Laminator
 Type: 3S 3622
 year 2010
 quantity: 1 Laminator
 Available area for lamination: 3500 x 2100 mm
 Tempered glass from 3 – 4 mm
 Material encapsulation: EVA
 Capacity: Up to 16 moduls / h (60 cells, cycle time 15 min)



 The cycle time of the laminator is dependent on the type
of EVA being used. Each laminator can be loaded with 4
laminates per cycle (60 cells modules), resulting in a
capacity of approximately 16 laminates per hour per
laminator.

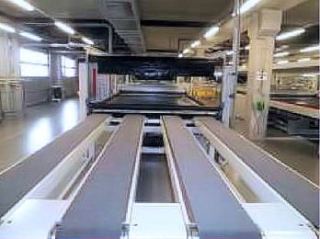

 load/unload automatic conveyor
 pin-lift system
 hybrid heating
 cooling section
