DVD Box Moulds

€8,000 each

or

€11,000 Pair

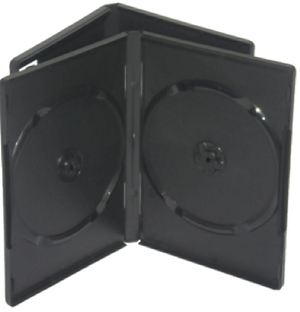

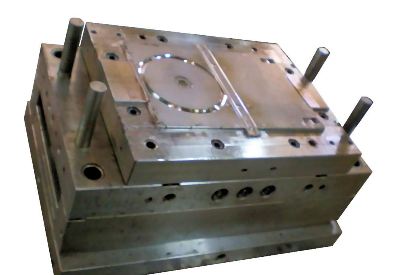

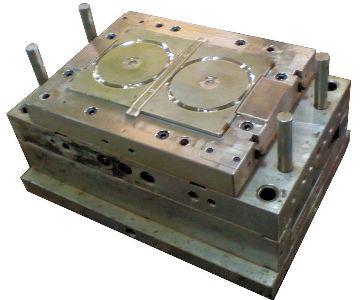

Mould 1

Closed size 136 x 192 x 16 mm
Weight 80gr
Capacity 2 DVD / CD
Paper 180 x 120 mm
Cover 272x183 mm
-Mold cavity with a possibility of changing the cavity to single version.
Dimensions: 346 x 496 x 400

Hot-channel injection
Extraction simple-KO

Ref 217106

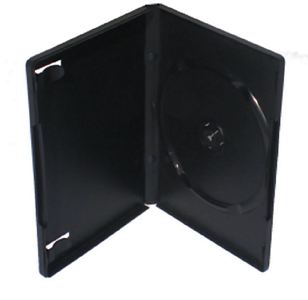

Mould 2

Closed size 136 x 192 x 16 mm
Weight 72gr
Capacity 1 DVD / CD
Paper 180 x 120 mm
Cover 272x183 mm
Material PP (Polypropylene
-Mold cavity with a possibility of changing the cavity double version.
Dimensions: 346 x 496 x 400 (esp)
Hot-channel injection
Extraction simple-KO
