Year 2009

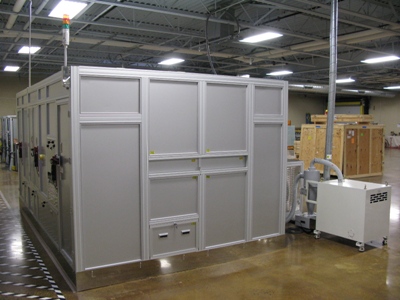

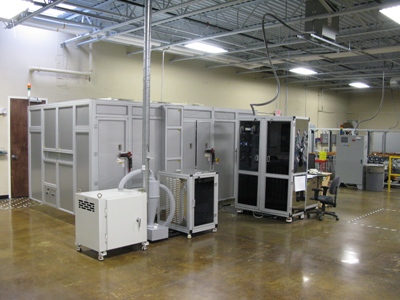

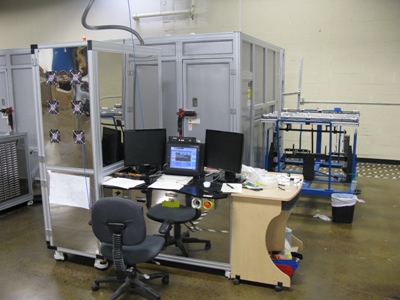

OpTek Laser Scriber
$490,000
Very little used
Minimum spacing between PI, P2, P3 scribe lines to ensure maximum use of available
cell real-estate
System automatically compensates tor temperature variations in glass substrates
P1, P2 and P3 scribing on the same machine platform
Cost more than $870,000 New
|
Ref 221691
|
|
|
|
|
Basic Specification
Takt Time/Scribe Type: <2 minutes
Scribe Types: PI, P2, P3
Scribe specification::-
Acceptable Isolation
No micro cracking preferred
No visible residue or recast
Position on work piece:-
Line to line accuracy 25u,m Start point on substrate 0.2mm
PI, P2, P3 Line widths: 40u.m or less
PI to P3 Spacing:<200um with active alignment option
|
|
|
Line to line spacing: Lasers:~10mm
DPSS
Shot-to-shot stability 5% RMS, Power adjustable 10% to 100%
Substrate size:
1,4m x 0.86m x up to 5mm thick (Assumed scribes 1.4m long) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
